This affordable crossover will stand the test of time. Extremely well built, with an internal power supply, it is easy to set up your system in stereo 2-way, 3-way or mono 4-way. Included is a mono sum subwoofer out, phase reverse switch on all outputs.
| Loading... | ||||||
234XL Stereo 2/3 Way Mono 4-Way Crossover
The SWAMP 234XL is an affordable crossover that will stand the test of time. Extremely well built, with an internal power supply, it is easy to set up your system in stereo 2-way, 3-way or mono 4-way. Included is a mono sum subwoofer out, and phase reverse switch on all outputs. With many other features, this processor provides great precision at a professional standard.
Rugged and Well Built

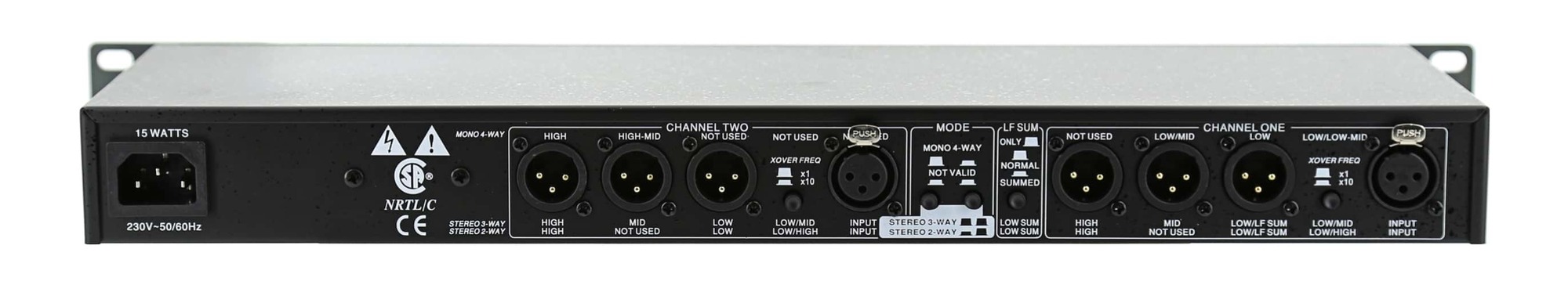

All the inputs and outputs are XLR balanced jacks that are bolted down to the chassis. This "nutting down" of the jacks insures that even if someone steps on a cable plugged into the unit, it's not going to tear up the circuit board inside.
Highly Customisable
Back panel switches allow you to select the range of the crossover frequencies individually for both channels. The crossover frequency controls have a green LED that indicates when the x10 switch on the back panel is activated. All these switches are on the back panel because it could be disastrous if you were to change them mid-program. On the front panel there are LEDs that indicate whether the unit is in mono or stereo mode. Each channel has an input gain control for proper level setting. There's a recessed 40 Hz low cut (HPF) on each channel to remove unwanted low frequencies. Both the low and high outputs on each channel have a gain control ranging from -infinity to +6 dB, to allow muting of individual outputs and for level matching.
Features:
- XLR balanced ins and outs
- Mode switches for mono 4-way or stereo 2-way/3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all band outputs
- 24dB per octave filters
- Stereo/Mono status LEDs indicate the selected mode
Specifications:
| Input Connectors | XLR |
| Input Type | Electronically balanced/unbalanced, RF filtered |
| Input Impedance | Balanced >50k ohm, unbalanced >25k ohm |
| Max Input | >+21dBu balanced or unbalanced |
| CMRR | >40dB, typically >50dB at 1kHz |
| Output Connectors | XLR |
| Output Type | Impedance-balanaced/unbalanced, RF filtered |
| Output Impedance | Balanced 200 ohm, unbalanced 100 ohm |
| Max Output | >+21dBu balanced/unbalanced into 2k or greater |
| Bandwidth | 20Hz to 20kHz, +/-0.5dB |
| Frequency Response | < 3 Hz to > 90 kHz, +0/-3 dB |
| Signal to Noise Ratio | Ref: +4 dBu, 22 kHz measurement bandwidth |
| Signal-to-Noise (Stereo Mode) | >94dB (Low Output), >93dB (Mid Output), >92dB (High Output) |
| Signal-to-Noise (Mono Mode) | >94dB (Low Output), >94dB (Low/Mid Output), >92dB (High/Mid Output) |
| Dynamic Range | > 114 dB, unweighted, any output |
| THD+Noise | < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz |
| Interchannel Crosstalk | < -80 dB, 20 Hz to 20 kHz |
| Crossover Frequencies (Stereo Mode) | Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) |
| Crossover Frequencies (Mono Mode) | Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); High-Mid/High: 450 Hz to 9.6 kHz; Low-Mid/High-Mid: 450 Hz to 9.6 kHz |
| Low cut Switch | Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel. |
| Phase Invert Switch | Inverts the phase at the output, one switch per output. |
| x1 / x10 Switch | Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel. |
| Mode Switch | Selects stereo 2-way or mono 3-way operation and disables all LEDs for controls that are non-functional in the selected mode. |
| LF Sum Switch | Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode. |
| Indicators | Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output) |
| Operating Voltage | 100-120 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50 Hz |
| Power Consumption | 15W |
| Power Connector | IEC receptacle |
| Dimensions | 4.4cm H x 48.3cm W x 17.5cm D) |
| Unit Weight | 1.8 kg |
