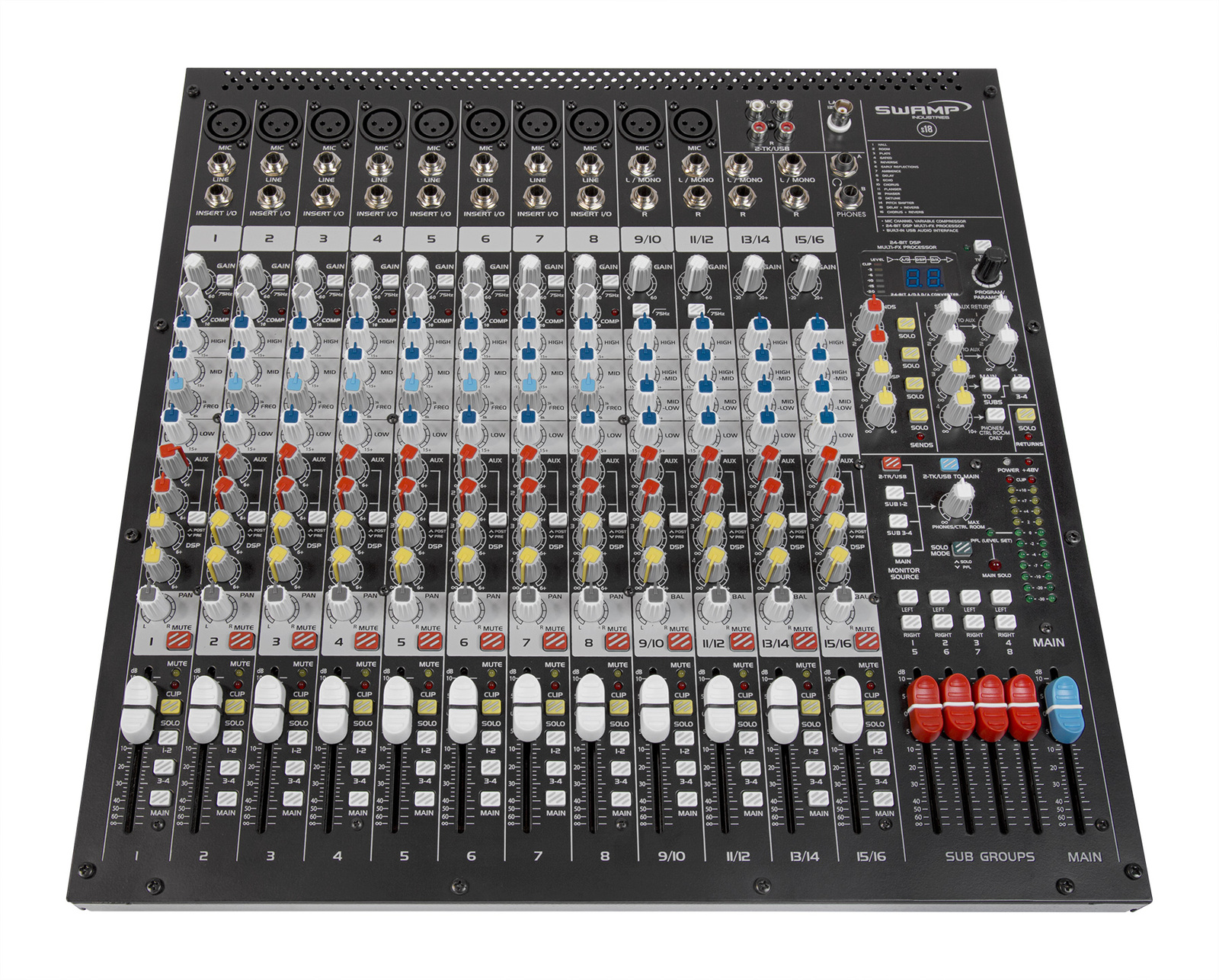

SWAMP S18-MK2 18CH Mixing Desk - Compressor - Effects - USB Audio Interface
SWAMP S18-MK2 Mixing Desk - 10 XLR Mic Preamp Inputs - USB Audio Interface
SWAMP impressed the market with original S series analog USB mixing consoles and now follow up with the S-MK2 series, featuring improved knobs and faders, robust design and 19inch rack rails included as standard.
The S-MK2 Series mixers combine excellent build quality, stunning sound performance and a remarkable price to offer unbeatable value. On-board Compressor, EQ, AUX and effects options makes the S18 perfect for performing musicians and small bands. A high quality Stereo USB output enables the S18 to be used with confidence, as a home studio audio interface.
Quality V+Z Preamps
Critical to the performance of any decent audio mixer are the in-built microphone preamps. Featuring carefully designed V+Z preamps that offer undistorted, noise-free gain with plenty of headroom, usually reserved for costly outboard preamps units.
In-Built Compressors
The first eight XLR mic channels (1-8) features an in-built, 1-knob compressor that has intuitive threshold, ratio, attack and release presets. Increasing the compression on a channel with lower the dynamic range of the signal and increases it perceived loudness. The loud peaks are squashed down and the quiet sections are boosted. Use the compressor simultaneously with the gain knob for best results.
19" Rack Mountable - Rack Rails Included

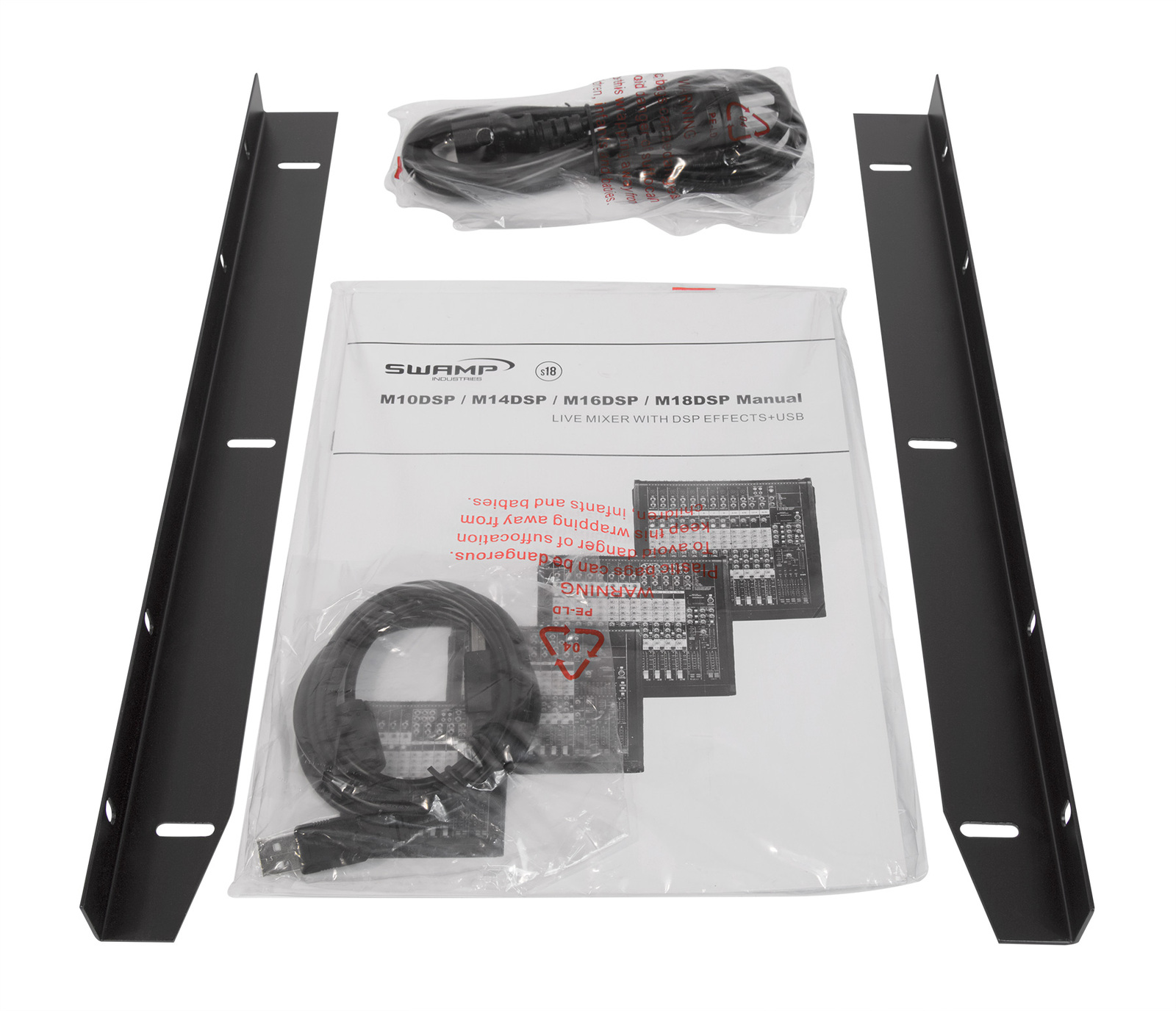

The entire S-MK2 mixing desk series are 19" rack mountable, with the rack rails required included with every model. The rack rails simply attach to the side of the mixer with 3 screws already present on the mixer, then it is ready to be placed into any 19 inch rack case or frame.
AUX Sends - Pre or Post
Equipped with auxiliary (AUX) sends, that allow additional "mixes" of channels to be sent from the mixing console to foldback speakers or outboard effects. Ideal for creating foldback mixes for on stage performers. With a "Pre" and "Post" option for EACH CHANNEL, the AUX sends are extremely versatile. The FX channels can also be used as a 3rd and 4th AUX send.
Sub-Group Bus Channels
Being equipped with two (Left+Right) Sub-Group channels enables the sound technician to create additional mixes, that can either be routed back into the main mix, or outputted directly through the sub group output jacks.
In-Built Effects
Each channel has an FX control knob that will send the signal to the in-built stereo effects processor. Includes all the classic preset "mixing effects"; reverb, delay, chorus, flanger, etc. Main volume controls for the FX send and return enable you mix the "dry" and "wet" (effected) signals together for optimal results.
British Channel Strip EQ
Versatile British 3-Band EQ on each mic channel, with a sweepable mid frequency, allowing the frequency of the mid range EQ control to be adjusted. 15dB of level control each way gives the audio engineer plenty to work with. Line Level channels have a 4-band EQ.
Direct Outs

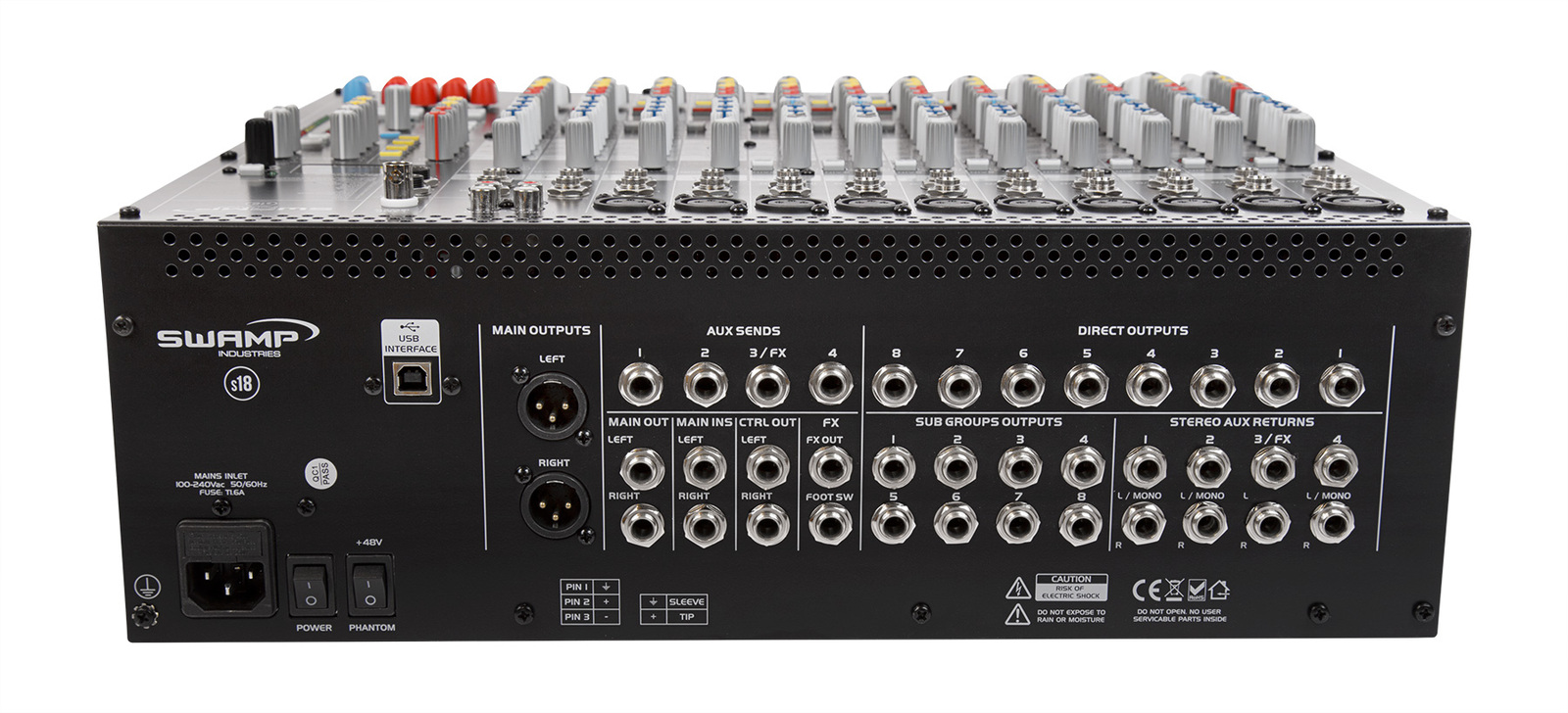

The S18-MK2 features 8 Direct Outputs. These are unbalanced phone jacks, post EQ, post mute, and post fader. Ideal for connecting to external recording inputs.
USB Audio Interface Functionality
The S-series mixing consoles feature a USB input/output with quality A/D, D/A converters for 16-bit, 48kHz recording quality. The audio sent to the computer from the mixer is identical to the stereo MAIN MIX output signal. Audio from the computer can also be routed back into the mixer signal path for playback. It should be noted that the USB circuit cannot be used to record and playback signal simultaneously.
Features:
- 10 V+Z mic preamps
- 4 Stereo Line inputs
- Insert (send / return) channels
- Intuitive Compression
- 3-band EQ - Sweepable mids
- 2 AUX send channels (4 if FX used as AUX)
- Pre / Post AUX functionality
- On board Effects processor
- 2 Stereo Sub Groups - Independant Outputs
- USB Connectivity
- Dual Headphone Output
Specifications:
Maximum Input Level: | Mic +22dBu Other Line: +20dBu |
Maximum Output Level: | Main XLR: +28dBu Other Output +22dBu |
Meters: | 3 Colour LED, quasi peak response |
Sensitivity: | 0VU=+4dBu |
Master Meter: | 12 Segment, -30dB to Clip |
Channel Meter: | Red LED, Clip |
Frequency Response | +/-1dB, 20Hz - 30KHz |
Mic CMRR at 1KHz: | >70dB Typical |
THD+n at +14dBu at 1KHz: | Mic to mix out <0.005% |
Crosstalk (@ 1KHz): | Fader Shutoff >89dB Mute Shutoff >89dB |
Noise, rms 20Hz to 20KHz: | Mic Input EIN -129dBu Main Mixer Fader unity channel fader down <-95dBu(-97dB S/N) Main mix fader unity <-82dBu(-86dB S/N) |
Channel HPF: | 18dB/Oct below 75Hz |
Mono 3-Band EQ |
High: Shelving +/-15dB - 12KHz |
Stereo Line 4-Band EQ |
High: Shelving +/-15dB - 12KHz |
DSP: | Converter: 24 bit sigma delta, 64/128-times oversampling Sampling Rate: 40kHz |
USB: | Audio: Stereo In/Out Connector: Type B Converter: 16-Bit Sampling Rate: 48kHz |
Power Supply: | 110-240VAC, 50/60Hz |
Power Consumption: | 50 Watts |
Fuse: | 100-240VAC, T 1.6A, 250V, 5x20mm |
